Elwin Security repairs and replaces DoorBird IP video door stations at Bay Area multifamily and commercial properties. That covers the D201, D202, D21x and D22x: the main electrical unit, the front panel, the keypad, display, call-button and multi-tenant modules, the PoE path the station runs on, and the relays that release the door or gate.
Use case
Each of the three situations below has a different fix.
DoorBird's D21x manual states that the device will not start if the PoE switch or injector does not support IEEE 802.3af Mode A, and that the network cable to the switch can be no longer than 80 meters (262 feet). A D22x station needs IEEE 802.3at Mode A/B instead.
DoorBird publishes replacement guides for the D21x keypad module with 12 keys, the display module with the 16-key keypad, the multi-tenant module, the call buttons and the front panel. Elwin replaces the module that failed and leaves the main electrical unit in place.
When the directory, the credential count or the door-release needs go past what the installed model supports, Elwin replaces the station.
Service focus
The first job is to identify the series and the modules fitted, then match them to DoorBird's replacement guides.
DoorBird's D21x guides cover replacing the keypad module P0302 with 12 keys, the display module with the 16-key keypad, the multi-tenant module MTM18A, the call buttons and the panel. The keypad guide notes that the fastening nuts are tightened only hand-tight and then loosened by half a turn, and that a key that cannot be pressed means the nearby nut is too tight. Elwin repairs with the DoorBird module that matches the station.
DoorBird's D21x manual warns that an electric door opener wired directly to a door station could be tampered with by unauthorized third parties. Elwin tests the PoE source, the cable run, the relay outputs and the opener power supply before touching the panel.
Elwin replaces the station with a D22x main unit for a D21x, a D1101UV on a D201/D202 housing, or another video intercom.
Service check
A model name on the faceplate is not enough. The series, the modules fitted and the PoE standard at the switch decide which DoorBird guide, part or path applies.
PoE switch or injector standard (802.3af Mode A for the D21x, 802.3at Mode A/B for the D22x), cable length against DoorBird's 80-meter limit, any A1072 two-wire converter, and upload speed against the 0.5 Mbps minimum.
Which relay drives which door or gate, whether an A1081 is fitted, and where the opener's separate power supply comes from.
The result of DoorBird's "Check for firmware update" function.
Scope details
The front panel is what visitors see. The main electrical unit, the PoE path, the relays and the directory are what a repair touches.
DoorBird's 08/2025 D21x data sheets list the main electrical unit and the front panel in the scope of delivery, with the mounting housing sold separately, and state that assembly requires professional skills or a technician. DoorBird's D21x manual warns that direct sunlight can push the housing past its maximum allowed temperature and may permanently bleach the color filters on the image sensor chip, and that defects caused by direct sunlight are not covered by warranty.
DoorBird's D21x manual (version 4.1) says the station is powered via PoE, that no power supply unit is included and DoorBird only recommends PoE, and that the upload speed of the internet connection should be at least 0.5 Mbps. Where only two wires are available at the assembly location, DoorBird's 2-wire Ethernet PoE+ Converter A1072, sold separately, transfers network data and power over a simple two-wire cable.
DoorBird's A1081 manual states that its bi-stable latching relay #1 keeps its state even in the case of loss of power. The D22x manual lists a 12 V DC, 0.48 A output, for example for a door opener, with a maximum continuous load duration of 1 minute.
The D21x manual states that firmware updates are generally automatically installed via the Internet if technically possible, and that installed firmware updates cannot be undone.
Process
Repair decisions follow DoorBird's published manuals and replacement guides.
Record the series, modules, PoE source, cable run and relay wiring, and test power-up, calls, keypad, display and release at the panel. DoorBird's D21x manual says the diagnostic LED lights up about 30 to 60 seconds after power is connected, and the device is ready for operation once it has emitted a short diagnosis sound.
Result: The quote names the exact DoorBird module, network fix or replacement, not a generic intercom repair.
Match the failure to DoorBird's replacement guides or the D22x and D1101UV upgrade paths.
Result: The property knows what the fix costs and what it leaves in place.
Fit the module or the new main unit, restore the PoE and relay path, add the station in the DoorBird App, load the directory, PIN codes and tags, test each relay and call path, and show the property team how the app administration works.
Result: The entry works and the property can manage its own directory.
Field proof
The points below come from DoorBird's own documents, and the photos show a mesh-panel entry door with a cable-fed lock body at the door edge and an electric strike with its faceplate removed.
DoorBird's UK PSTI statements of conformity declare a support period of 2 years starting from the date of the document's signature for the D21x product series and the D22x, and the D22x statement is dated Berlin, 15 May 2026.
A surface closer, a frame-mounted sensor and a cable-fed lock on a mesh entry door.

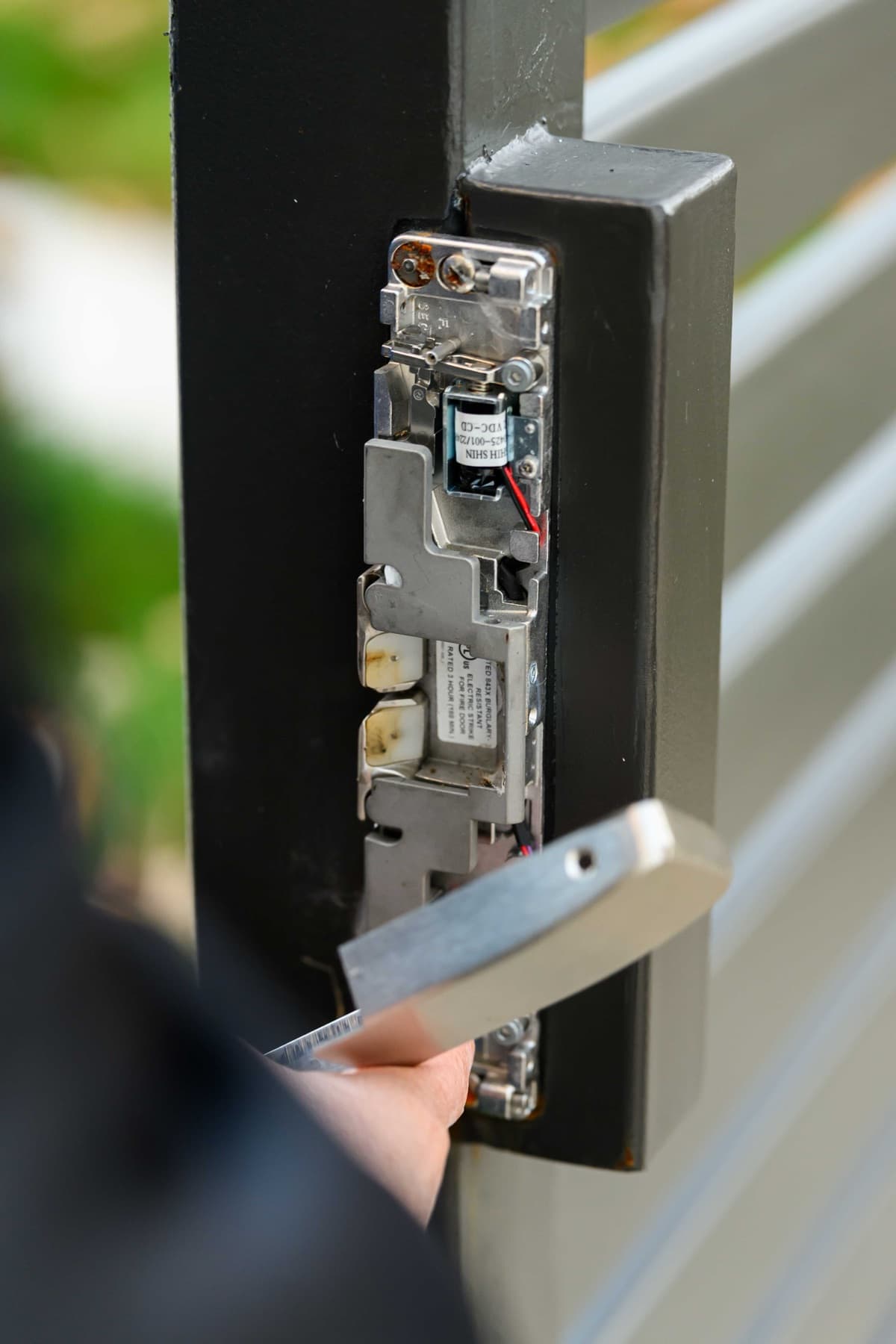

An electric strike in a gate post with the faceplate removed, solenoid and keeper exposed.
DoorBird's D21x replacement guides carry last updates from 05/2026 to 07/2026. DoorBird's UK PSTI statement for the D21x product series declares a support period of 2 years starting from the date of the document's signature, and DoorBird publishes a guide, last updated 05/2026, for replacing a D21x with a D22x.
